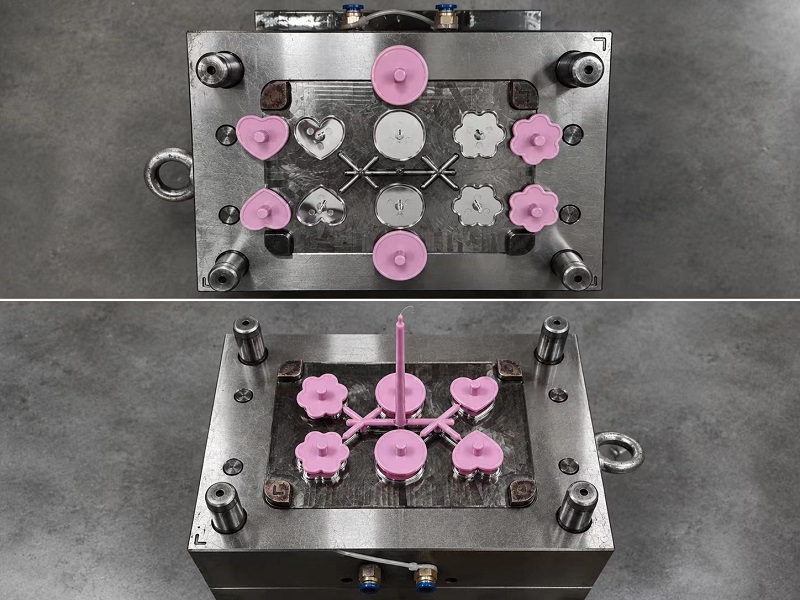

Our engineering team recently completed a custom family mold project designed for a series of decorative plastic components featuring heart-shaped, flower-shaped, and round designs.
Unlike traditional single-cavity molds, this family mold integrates multiple product geometries into one tool, allowing different parts to be produced in a single injection molding cycle.
The customer required several matching components for a product collection. Developing individual molds for each part would have increased tooling costs and extended the project timeline.
After evaluating the product structure, material requirements, and annual demand, our engineering team proposed a family mold solution.
This approach helped the customer:
One of the key challenges in family mold design is balancing material flow between cavities with different shapes and volumes.
For this project, our mold engineers optimized the runner layout and gate positions to ensure:
The final mold allows three different components to be produced efficiently in one production cycle.
We specialize in custom mold design and manufacturing for plastic products, packaging components, promotional items, household products, and consumer goods.
Whether you need a single-cavity mold, multi-cavity mold, family mold, or complete OEM/ODM manufacturing support, our team can provide tailored solutions from design to mass production.
If you are developing a new plastic product and looking for cost-effective tooling solutions, feel free to contact our engineering team for consultation.
